softwall downflow cleanroom booth with FFU
- Product Details:
-
Dimension (W*D*H):as request
In size (mm):as requst
Type Suitable:antistatic softwall clean booth
Rated air flow:0.45m/s
Power:220v OR 110V
Material:anodised aluminum etc
Blowing side:laminar flow
Brand:alphaclean
Place of origin:shenzhen,china
Warranty:1 year
Detailed Product Description

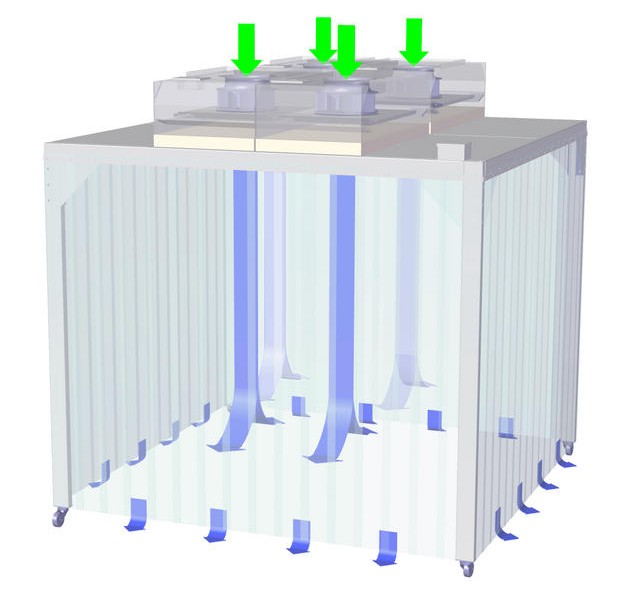

Clean booth is the most quick and easy creation of a simple clean room , provide local high air purification area.
Assembly structure , easy installation
Greatly shorten the delivery cycle
Removable
Easy to raise the Cleanroom level
Easy to expand the cleanroom area
Effective internal space available
Low cost, fast construction and no floor height limit
Totally customized to meet your demand
CLEANLINESS CLASS LEVEL
PRODUCT DISPLAY
Assembly structure , easy installation
Greatly shorten the delivery cycle
Removable
Easy to raise the Cleanroom level
Easy to expand the cleanroom area
Effective internal space available
Low cost, fast construction and no floor height limit
Totally customized to meet your demand
| TYPE | SOFTWALL CLEAN BOOTH | HARDWALL CLEAN BOOTH |
| Wall Material | Anti-static soft PVC wall curtain 106~109Ω | Anti-static acrylic 106~109Ω |
| Cleanliness | From Class 100 to Class 10,000 | |
| Frame Material | Coated steel, anodized aluminum, Stainless Steel | |
| FFU | 2'X4' Galvalume in standard size ,110/220v AC 50/60 hz | |
| HEPA Filter | H14 Hepa filter 99.997% 0.3micro | |
| Lighting | Available in LED and T5 | |
| Air condition |
For your requirement, Available in constant temperature air conditioner /constant temperature and humidity conditioner |
|
CLEANLINESS CLASS LEVEL
| ISO Class | Fed 208 | Controls | HEPA filter coverage as % of ceiling | Air velocity at table level in FPM | Air changes rate per hour |
| 1 | - | Stringent | 100 | ||
| 2 | - | Stringent | 100 | 70 - 130 | ＞ 750 |
| 3 | 1 | Stringent | 100 | 70 - 130 | ＞ 750 |
| 4 | 10 | Stringent | 100 | 70 – 110 | 500 - 600 |
| 5 | 100 | Stringent | 100 | 70 - 90 | 150 - 400 |
| 6 | 1,000 | Intermediate | 33-40 | 25 - 40 | 60 - 100 |
| 7 | 10,000 | Intermediate | 10-15 | 10 - 15 | 25 - 40 |
| 8 | 100,000 | Less stringent | 05-10 | 3 - 5 | 10 - 15 |
PRODUCT DISPLAY
