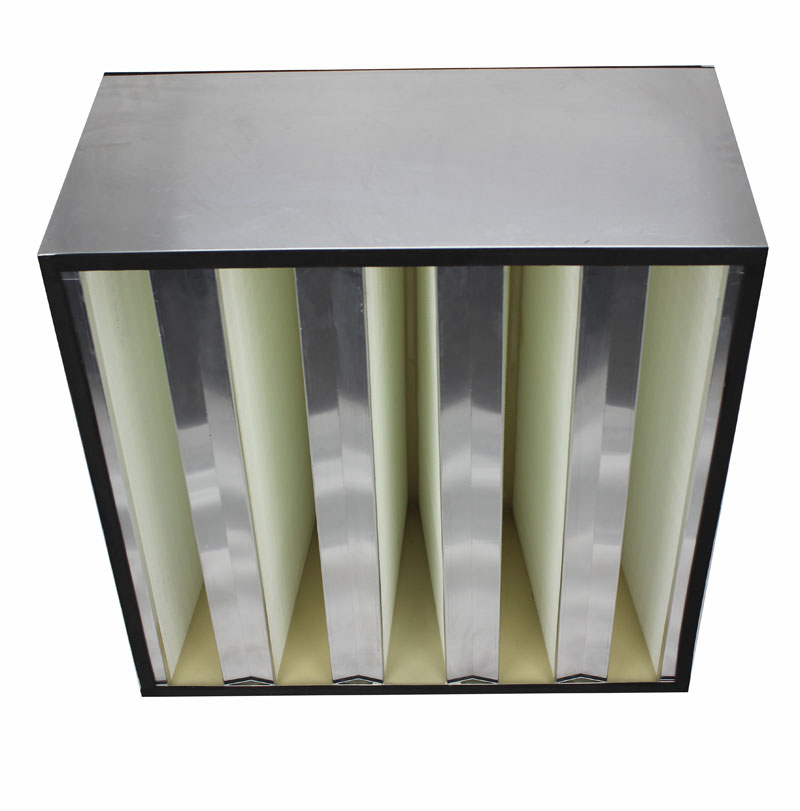

Metal Frame Compact V-type HEPA Air Filter
- Product Details:
-
Model: V Type hepa unit
Dimension (mm): 610*610*292
Material: GI frame,fiberglass
Rated air flow: 2.5m/s
Place of origin: china
Minimum order quantity: 1pc
Packing detail: carton box
Delivery time: 7 days
Supply ability: 500 pcs
Payment terms: TT,LC,Paypal
Detailed Product Description
Application: High efficiency final filtration in air conditioning systems, extraction from corrosive
or hazardous environments.
Type: High air flow incinerable HEPA filter.
Frame: ABS. Or galnised
Media: Glass fibre paper.
Separator: Hot-melt beads.
Sealant: Polyurethane.
Gasket: on quest
EN 1822 efficiency: H10, H12, H13, H14.
MPPS efficiency: H10:>85%, H13:>99.95 & H14:>99.995%.
Recommended final pressure drop: 600 Pa.
Maximum air flow rate: See table, use nominal values otherwise a reduction in efficiency may
occur.
Temperature: 60°C maximum in continuous service.
Mounting systems: Front and side access filter frames. Terminal housings and safe change
systems.
Optional: Alternative frame materials and size available on request.
or hazardous environments.
Type: High air flow incinerable HEPA filter.
Frame: ABS. Or galnised
Media: Glass fibre paper.
Separator: Hot-melt beads.
Sealant: Polyurethane.
Gasket: on quest
EN 1822 efficiency: H10, H12, H13, H14.
MPPS efficiency: H10:>85%, H13:>99.95 & H14:>99.995%.
Recommended final pressure drop: 600 Pa.
Maximum air flow rate: See table, use nominal values otherwise a reduction in efficiency may
occur.
Temperature: 60°C maximum in continuous service.
Mounting systems: Front and side access filter frames. Terminal housings and safe change
systems.
Optional: Alternative frame materials and size available on request.
Standard specification
| Model |
Outside Dimensions (mm) |
Rated Air Flow (m3/h) |
Initial Resistance (Pa) |
Efficiency (%) |
Numbers Of V Banks |
| GXX-16J | 305×610×295 | 1600 | ≤250 or ≤150（HV） | H10~H14 | 4 |
| GXX-32J | 610×610×295 | 3200 | ≤250 or ≤150（HV） | H10~H14 | 4 |
| GXX-20J | 305×610×295 | 2000 | ≤250 or ≤150（HV） | H10~H14 | 5 |
| GXX-40J | 610×610×295 | 4000 | ≤250 or ≤150（HV） | H10~H14 | 5 |
