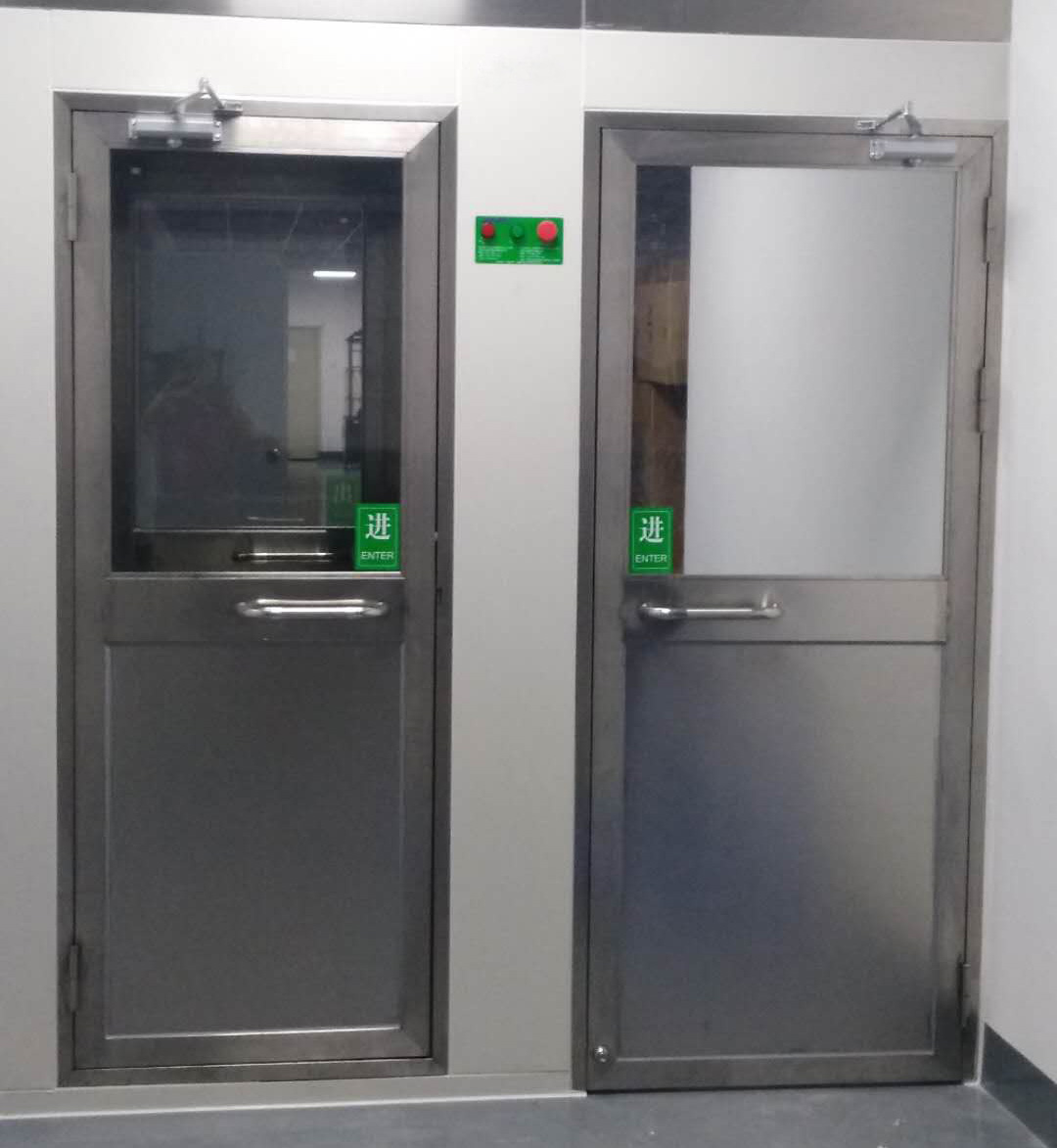

W900MM White Air Shower Clean Room , Air Jet Shower With Electric Lock
Product Details:

Dimension (W*D*H):1400×1600×2050

In size (mm):790×1530×1930

Type Suitable:3 persons

Rated air flow:2000 m3/h

Power:380V 3phase

Material:powder coated steel

Blowing side:two sides

Brand:ACAT

Place of origin:shenzhen,china

Warranty:1 year

Detailed Product Description

 Air shower is equipment of cleanroom and fabricated small Room,used for blowing off ppl’s and belongs’s carry on dust,as Well as act as air valve usage,preventing air into the cleanroom without purification which effectively prevent the cleanroom be polluted.
The air by the action of fan though the primary filter access Air to plenum chamber.after though HEPA filter cleaning, by the highly speed blowing though air shower nozzle which direction can be adjusted .the blowing off dust was recycling to the pre filter to achieve ppl and goods and air shower’s indoor self-recycling clean systems

System : infrared Automatic reaction system,

Interlock :electric/ mechanical

Showering time: The 0-99 seconds adjustable (99s factory defaults)

Structure :open side by side or right-angle to open the door

External frame:Stainless steel or coated cold-roll steel

Door, floor, nozzle and panel: stainless steel

Filter :primary and hepa filter

Fan: low vibration, low noise, imported or domestic fan

Winds: 20~28 m/s

Power:220v/110v/380v

Optional: Alternative frame materials and size available on request.

Specifications FL1R115 FL1R1401 FL2R1402 FL3R1403 FL1800 FL2100
L×W×H(mm)
Air shower room size
1150×1000×2050 1400×1000×2050 1400×1600×2050 1400×2000×2050 1800×2000×2050 2100×2000×2050
L×W×H(mm)
The showing area size
790×910× 1930 790×910× 1930 790×1530×1930 790×1910× 1930 1200×1910× 1930 1500×1910× 1930
HEPA filter nos 610*610*100 mm   1 pc 610*610*100 mm   2 pcs 610*610*100 mm   2 pcs 610*610*100 mm   4 pcs 610*610*100 mm   4 pcs 610*610*100 mm    4 pcs
Nozzle number(pc) 6 12 18 24 24 24
Efficiency 99.99 % 0.3 um   (H14)
Wind(m/s) 20~28
Power 3phase  380V  50HZ( option:220V ,3 phase or 220 V 1phase etc )
Power(KW) 0.75 1.5 2 2.2 3 4.5
Suitable Numbers 1~2 1~2 3 4 many many
