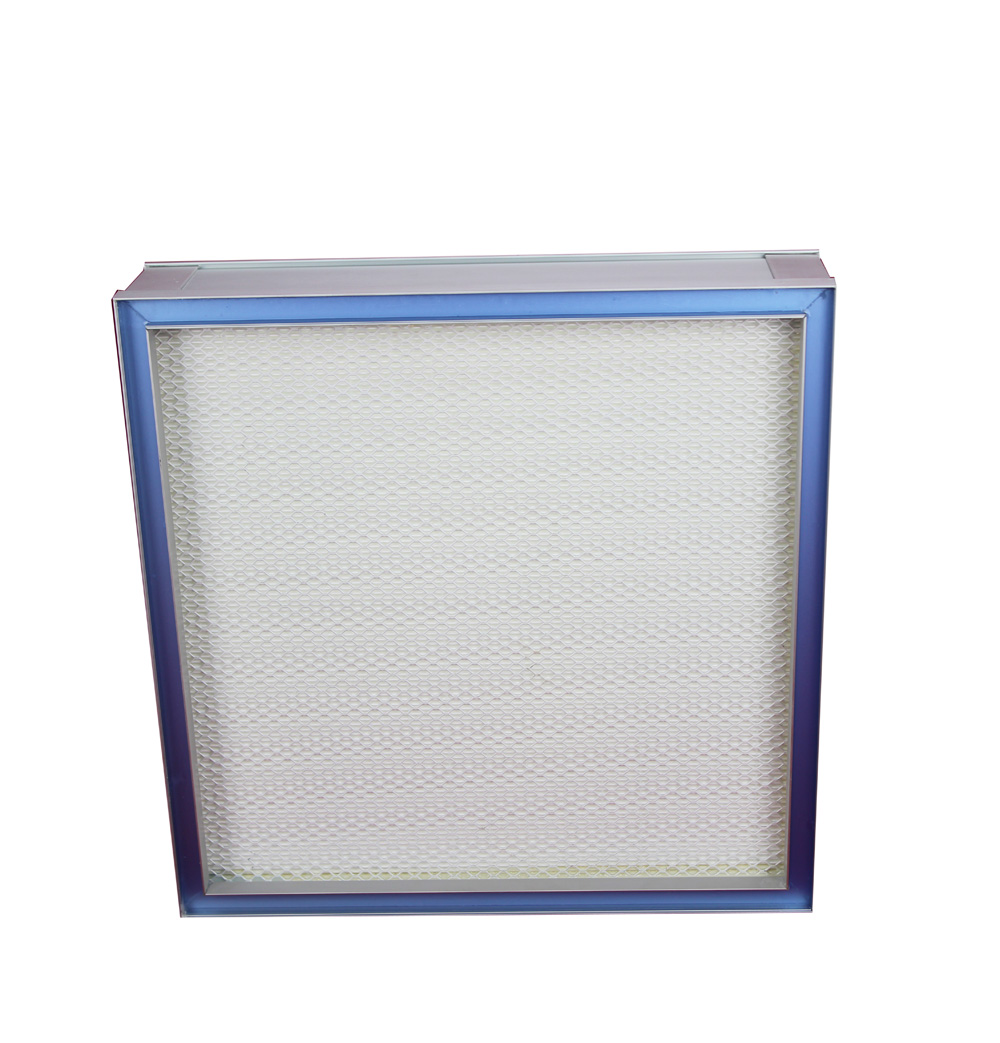

High Quality Mini Pleat Filter Silica Gel Seal Filter
- Product Details:
-
Model: YWGB gel sealed HEPA filter
Dimension (mm): 430*430*80
Material: fiberglass
Rated air flow: 500 m3/h
Place of origin: shenzhen,china
Minimum order quantity: 5pcs
Packing detail: wooden pallet
Delivery time: 3-15days
Supply ability: 1000 pcs per month
Payment terms: TT,LC,Paypal
Detailed Product Description
Application: Final or return filtration for clean rooms with turbulent flow.
Type: HEPA /ULPA filtering panel
Frame: Extruded and anodised aluminium.
Gasket: Half round continuous expanded polyurethane.
Media: Glass fibre paper.
Separator: Hot-melt beads.
Sealant: Polyurethane for mini pleat pack and gel seal in the flange
Grid: Mild steel painted grille upstream and downstream.
EN 1822 efficiency: H14.U15
MPPS efficiency: H14: ≥99.995%.; U15≥99.9995%.;
DOP efficiency: H14: ≥ 99.999%.; U15 ≥99.999%.;
Recommended final pressure drop: 600 Pa.
Maximum flow rate: See table, use nominal values otherwise a reduction in efficiency may occur.
Temperature: 70°C maximum in continuous service.
Test: : 100% individually scanned to EN 1822.
Mounting system: Mechanical clamping structure, Terminal housings.
Optional: Alternative frame materials and size available on request.
Top Gel Frame thickness :80mm,95mm,104mm
Side Gel Sealed Frame: 69mm,75mm,90mm,93mm, 96mm,100mm
Type: HEPA /ULPA filtering panel
Frame: Extruded and anodised aluminium.
Gasket: Half round continuous expanded polyurethane.
Media: Glass fibre paper.
Separator: Hot-melt beads.
Sealant: Polyurethane for mini pleat pack and gel seal in the flange
Grid: Mild steel painted grille upstream and downstream.
EN 1822 efficiency: H14.U15
MPPS efficiency: H14: ≥99.995%.; U15≥99.9995%.;
DOP efficiency: H14: ≥ 99.999%.; U15 ≥99.999%.;
Recommended final pressure drop: 600 Pa.
Maximum flow rate: See table, use nominal values otherwise a reduction in efficiency may occur.
Temperature: 70°C maximum in continuous service.
Test: : 100% individually scanned to EN 1822.
Mounting system: Mechanical clamping structure, Terminal housings.
Optional: Alternative frame materials and size available on request.
Top Gel Frame thickness :80mm,95mm,104mm
Side Gel Sealed Frame: 69mm,75mm,90mm,93mm, 96mm,100mm
| Model | Outside Dimensions(mm) |
Rated Airflow (m3/h) |
Initial Resistance (Pa) |
Efficiency (%) | |
| Top Gel Frame | Side Gel-sealed Frame | ||||
| YWGB |
95mm thickness W– 34 L – 34 |
434*434*90 | 500 | ≤ 220 | 99.99% |
| YWGB | 518*518*90 | 700 | ≤ 220 | 99.99% | |
| YWGB | 584*584*90 | 900 | ≤ 220 | 99.99% | |
| YWGB | 644*644*90 | 1100 | ≤ 220 | 99.99% | |
| YWGB | 949*644*90 | 1600 | ≤ 220 | 99.99% | |
| YWGB | 1254*644*90 | 2200 | ≤ 220 | 99.99% | |
| YWGB |
104mm thickness W – 40 L – 40 |
450*450*93 | 500 | ≤ 220 | 99.99% |
| YWGB | 484*484*93 | 700 | ≤ 220 | 99.99% | |
| YWGB | 610*610*93 | 1000 | ≤ 220 | 99.99% | |
| YWGB | 630*630*93 | 1300 | ≤ 220 | 99.99% | |
| YWGB | 915*610*93 | 1500 | ≤ 220 | 99.99% | |
| YWGB | 1220*610*93 | 2000 | ≤ 220 | 99.99% | |
