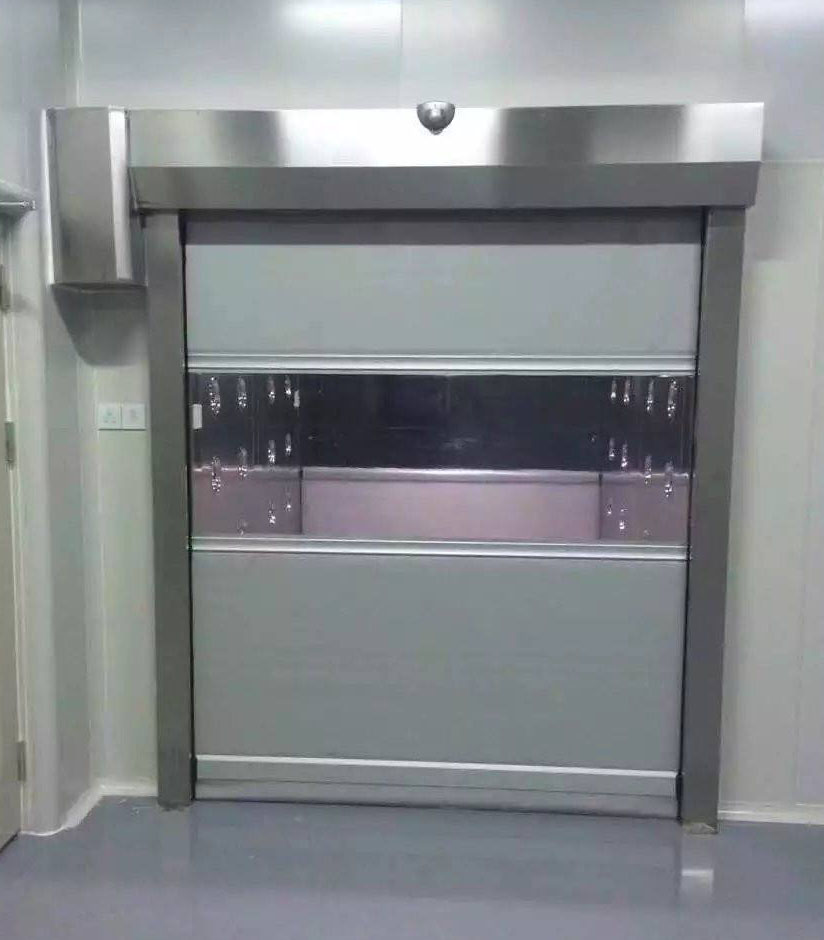

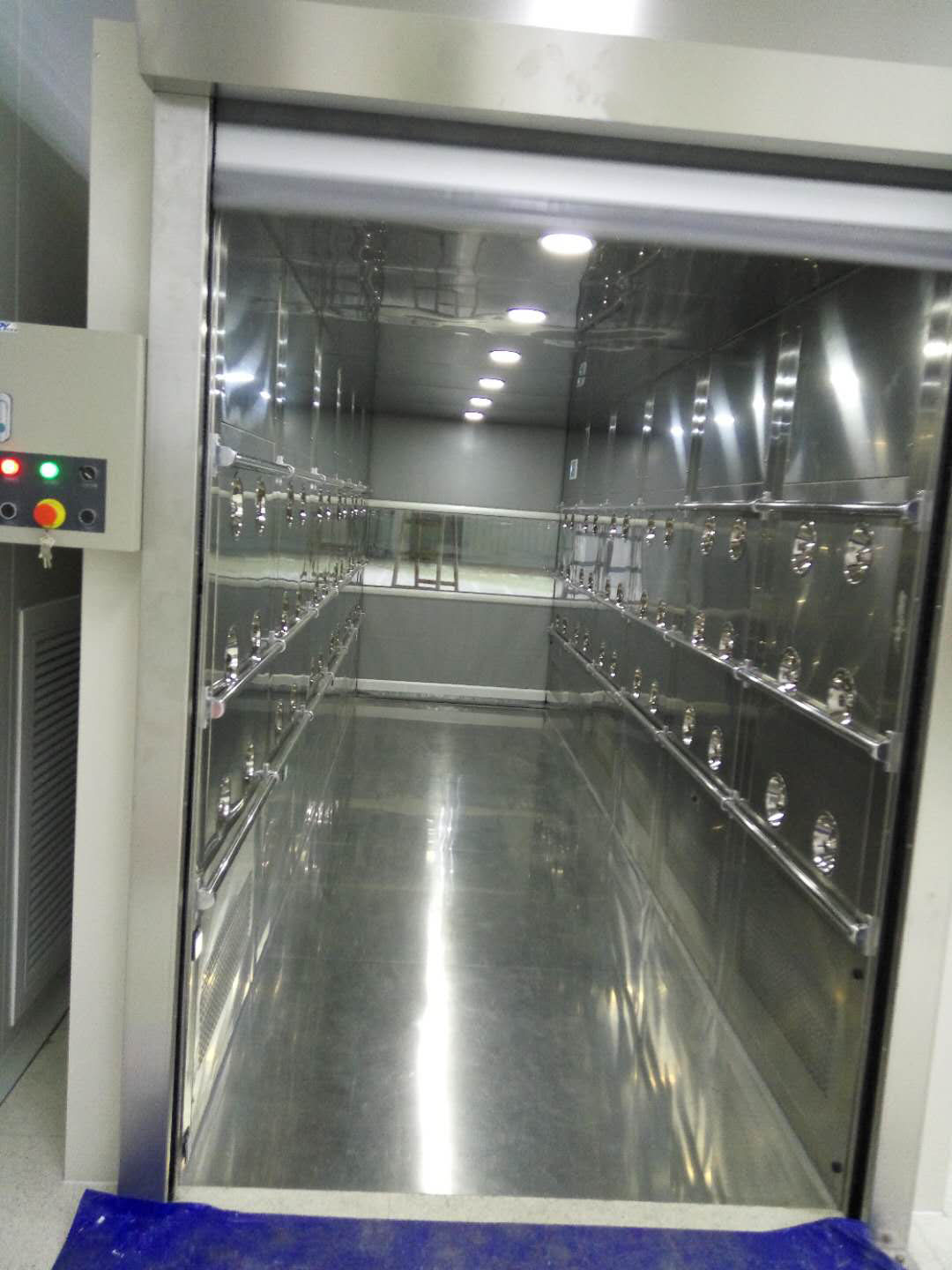

Cargo Air Shower Tunnel Soft PVC High Speed Shutter Doors
- Product Details:
-
Dimension (W*D*H):W2300*D2000*H2280
In size (mm):W1500*D2000*H1980
Type Suitable:cargo,for cart
Rated air flow:25m/s
Power:3kw
Material:for customized
Blowing side:side blowing
Brand:ACAT pvc shutter door air shower
Place of origin:shenzhen,china
Warranty:1 year
Detailed Product Description
Action Procedure of Rolling Curtain Door Cargo Air Shower:
1. People walk from the non-clean area to the outdoor door of the air shower room
2. When reaching the induction zone, the door opens automatically.
3. When a person enters the air shower room, the door is closed automatically in a preset period.
4. At this time, the person passes through the infrared sensor and the fan in the air shower room starts to blow.
5. After blowing at the set time,
The inner door opens and the man walks out.
6. When a person walks out, the automatic door is closed according to the predetermined time.
and return to standby status
Roll shutter door cargo shower room open mode optional:
1. Wireless remote control
2. Microwave Automatic Induction Switch
3. Non-contact induction switch
1. People walk from the non-clean area to the outdoor door of the air shower room
2. When reaching the induction zone, the door opens automatically.
3. When a person enters the air shower room, the door is closed automatically in a preset period.
4. At this time, the person passes through the infrared sensor and the fan in the air shower room starts to blow.
5. After blowing at the set time,
The inner door opens and the man walks out.
6. When a person walks out, the automatic door is closed according to the predetermined time.
and return to standby status
Roll shutter door cargo shower room open mode optional:
1. Wireless remote control
2. Microwave Automatic Induction Switch
3. Non-contact induction switch
| Model | HL2300-2 | HL2300-3 |
| Overall Size(mm) | W2300*D2000*H2280 | W2300*D3000*H2280 |
| Internal Size(mm) | W1500*D2000*H1980 | W1500*D3000*H1980 |
| Number Of Nozzles | 24 | 36 |
| Air Showering Time (S) | 10s Factory Setting,10- 99s Adjustable | |
| Material Of Main Body | 1.2mm Power Coated Steel, Surface Electrostatic Spraying | |
| Material Of Door | SUS 201/ SUS 304 ,Mirror/ Sanded Stainless Steel Plate | |
| HEPA Filter | 610*610*69*4pcs,99.99%@0.3um | 610*610*69*6pcs,99.99%@0.3um |
| Fan Power (W) | 750*4 | 750*6 |
| Light Power (W) | 20*2 | 20*3 |
| Voltage Supply | 380v 50hz | |
