customized prefabricatd modular hardwall clean room factory price
- Product Details:
-
Dimension (W*D*H):as request
In size (mm):as requst
Type Suitable:ISO modular cleanroom tent
Rated air flow:0.45m/s
Power:380v 220v
Material:painted steel,aluminum,SUS
Blowing side:downflow
Brand:alphaclean
Place of origin:shenzhen,china
Warranty:1 year
Detailed Product Description

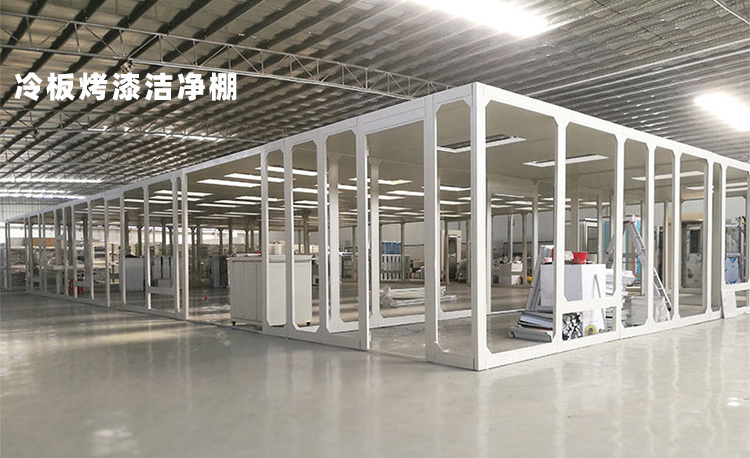

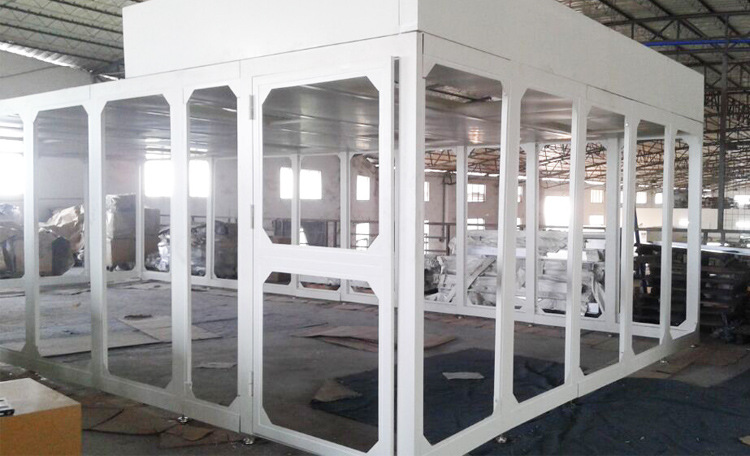

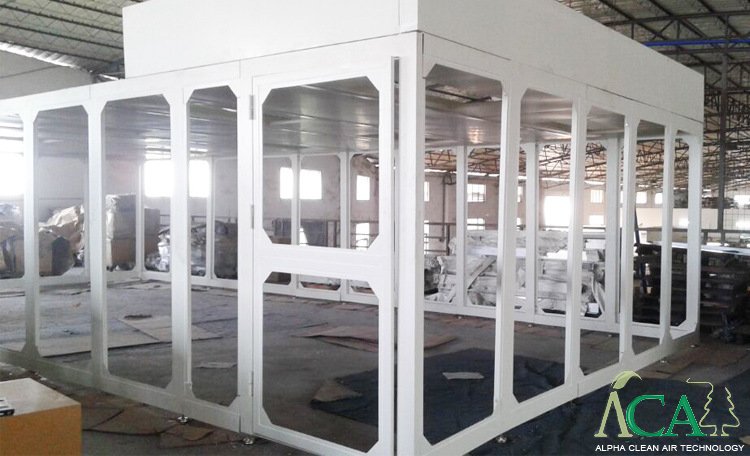

The structure is made of coated square steel, and the fan filter unit is assembly used to supply air. The surrounding is covered with anti-static drape, and the top is covered with a blind plate to form aarea. The internal purification class can reach 10 --- 100000. It is especially suitable for areas with high local purification requirement in the workshop, such as assembly operation line. Highly accurate product assembly area.
can be designed and manufactured according to the needs of use, its gradual application is large, installation is easy, construction period is short, and mobility is strong.
Surrounding materials adopts:
Anti static drape curtain 2mm ( anti static 106~ 109 Ω)
Grid type soft curtain 0.3/0.5mm
Acrylic 5mm
Tempered glass 5 mm
Clear grid, high transparency, visual transparency, and no aging
Door and featured accessories
Spray Steel plate / stainless steel handle door (double insulated glass window with German DORMA door closer and stainless steel handle)
Or PVC anti static strip curtain
Fixed foot cup / universal wheel
Modular cleanroom floor
Types of flooring :
Epoxy resin floor is impact resistant, high load
abrasion resistant and easy to clean;
PVC dust-proof floor / dust-proof anti-static PVC floor,
With rolled / sheet, environmentally friendly, stain-resistant, no dust
can be designed and manufactured according to the needs of use, its gradual application is large, installation is easy, construction period is short, and mobility is strong.
Main structure
Frame and sealing blind plate material :
Stainless steel / coated square steel(mm) 50*50 / 100*100
Anodized aluminum (mm) 40*40 / 50 * 50 / 40* 80
Stable, not easy to rust, not easy to produce dust
Quick installation of patent structureman
The blind plate is closed by paint steel panel or stainless steel panel
Stainless steel / coated square steel(mm) 50*50 / 100*100
Anodized aluminum (mm) 40*40 / 50 * 50 / 40* 80
Stable, not easy to rust, not easy to produce dust
Quick installation of patent structureman
The blind plate is closed by paint steel panel or stainless steel panel
Surrounding materials adopts:
Anti static drape curtain 2mm ( anti static 106~ 109 Ω)Grid type soft curtain 0.3/0.5mm
Acrylic 5mm
Tempered glass 5 mm
Clear grid, high transparency, visual transparency, and no aging
Door and featured accessories
Spray Steel plate / stainless steel handle door (double insulated glass window with German DORMA door closer and stainless steel handle)
Or PVC anti static strip curtain
Fixed foot cup / universal wheel
Purification system

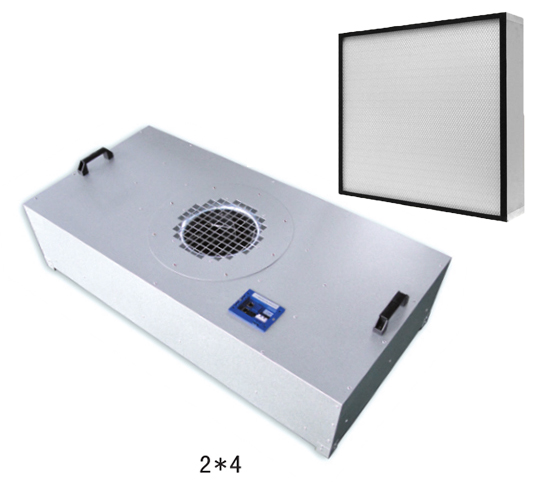

FFU fan filter unit
Galvanized casing or stainless steel
Large air flow centrifugal fan
Air flow ( m3 / h) :520/1080/1800/2210
Can run continuously for more than 50,000 hours
Low noise, built in diversion wind tunnel
Mini pleat HEPA filter 99.99@0 .3 um (H 14)
Optional With G4 Pre filter
FFU fan filter unit
Galvanized casing or stainless steel
Large air flow centrifugal fan
Air flow ( m3 / h) :520/1080/1800/2210
Can run continuously for more than 50,000 hours
Low noise, built in diversion wind tunnel
Mini pleat HEPA filter 99.99@0 .3 um (H 14)
Optional With G4 Pre filter
Control system

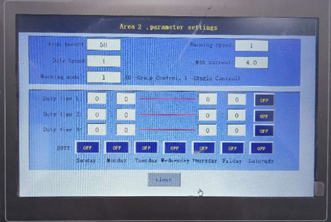

Adopt 7 inch / 10 inch LCD touch screen man-machine interfaceSwitch On/Off and mode settings for FFU (operating mode,
on duty mode)
Realize wind speed adjustment of remote FFU
and fault alarm of FFU
Adopt 7 inch / 10 inch LCD touch screen man-machine interfaceSwitch On/Off and mode settings for FFU (operating mode,
on duty mode)
Realize wind speed adjustment of remote FFU
and fault alarm of FFU
Modular cleanroom floorTypes of flooring :
Epoxy resin floor is impact resistant, high load
abrasion resistant and easy to clean;
PVC dust-proof floor / dust-proof anti-static PVC floor,
With rolled / sheet, environmentally friendly, stain-resistant, no dust
