Fan Powered Dynamic Pass Through Box
Product Details:

Dimension (W*D*H):700x570x1100

In size (mm):500x500x500

Type Suitable:for goods transfer

Rated air flow:0.45m/s

Power:0.3kw

Material:stainless steel

Blowing side:top

Brand:ACAT laminar flow pass box

Place of origin:shenzhen,china

Warranty:1 year

Detailed Product Description

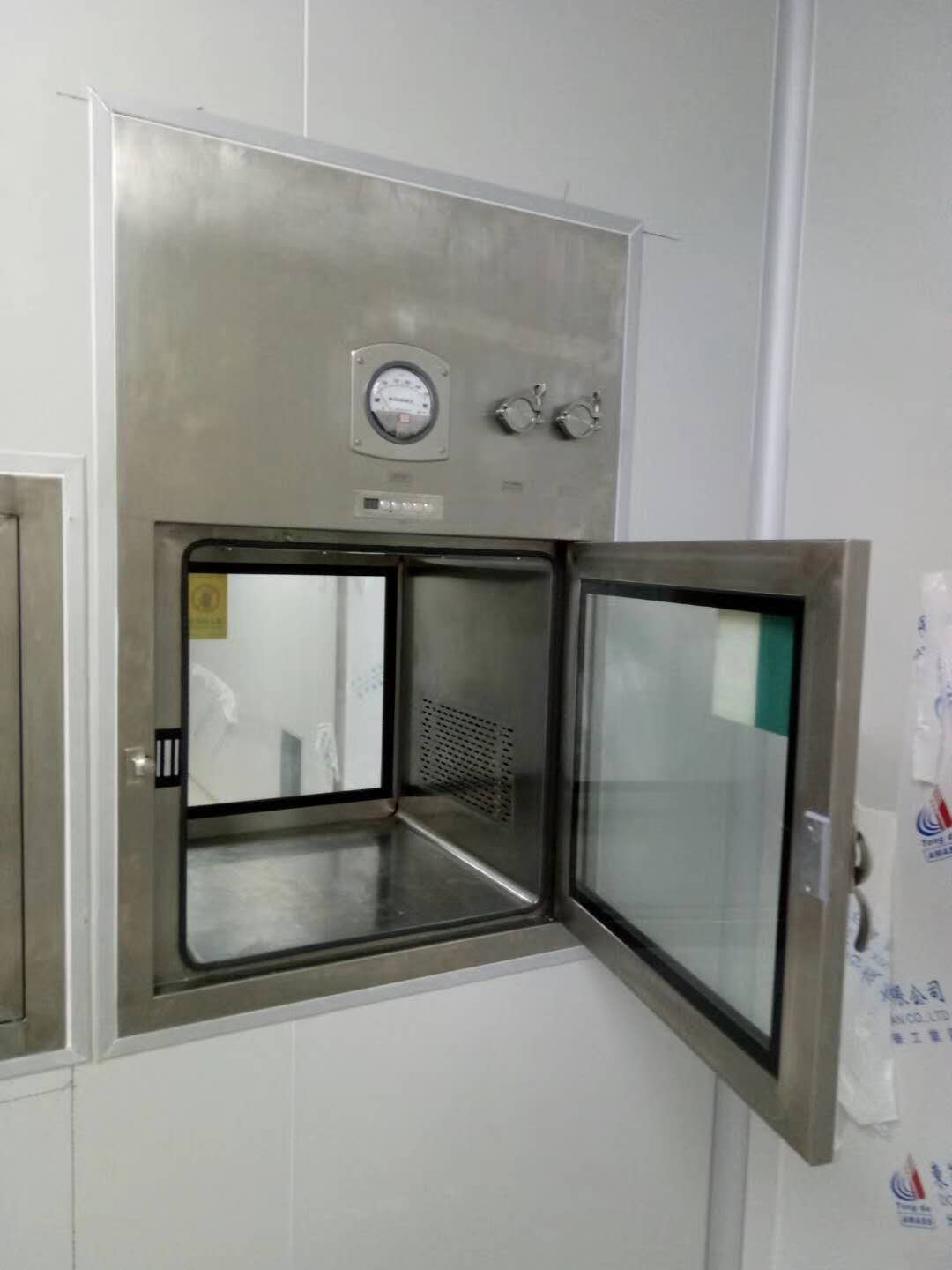

Laminar flow pass box
The laminar flow pass box is an auxiliary device for the clean room, mainly used for the transfer of small items between the clean area and the non-clean area. In order to reduce the number of door opening in the clean room, the pollution in the clean room is minimized. An ultraviolet lamp is installed in pass box, and the articles are sterilized by ultraviolet rays and then enter the clean area. On the one hand, it acts as an air lock, so that clean room is not allowed to leak, and on the other hand, the self-cleaning effect is realized in the process of transmission to ensure the cleanliness of the articles and reduce the cross-contamination caused by the objects. .

       Description
1.pressure gauge   2. control panel
3.2layers tempered glass door 4.S.S handle
5.DOP test port 6. centrifugal fan
7.PAO injection hole 8.gel sealed HEPA filter
9.UV lamp 10.air outlet plate


Basic performance:
1. Cleanliness in the laminar flow pass box: Class A;
2. The inner and outer double-layer shells are treated with circular arc inside to ensure seamless connection;
3. Using laminar flow design, the airflow direction adopts the upper-feed-down mode, and the bottom adopts the 304 stainless steel cold-rolled plate punching design, and with the reinforcing rib support;
4. Filter: PRE filter G4, and HEPA Filter H14;
5. Wind speed: 0.36-0.54m/s (tested at 150mm under the high-efficiency airflow equalizer board);
6. Differential pressure function: display filter pressure difference (range high efficiency 0-500Pa / medium efficiency 0-250Pa), accuracy ± 5Pa;
7. Control function: fan start/stop button, configure built-in electronic door interlock; set UV lamp, design separate switch;
8. Set the inspection port at the lower part of the pass box for maintenance of the fan;
9. Noise: <65db;
10. high efficiency airflow equalizer board: 304 stainless steel mesh board.


Technical Parameter

MODEL OVERALL SIZE(mm) INTERNAL SIZE(mm) AIR FILTER SIZE(mm) AIR FLOW(m/s) CLASS NOISE(dB) AIR SHOWERING TIME(min) POWER
(KW)
ACAT-CLCDC400 600x470x1000 400x400x400 230x180x90 0.45±20% A 65 Manual adjust
0-999
0.2
ACAT-CLCDC500 700x570x1100 500x500x500 330x280x90 0.3
ACAT-CLCDC600 800x670x1200 600x600x600 430x380x90 0.4
ACAT-CLCDC800 1000x870x1400 800x800x800 630x580x90 0.6
Note: The specifications listed in the table are for customer reference only, and the laminar flow pass box can be customized design.
