High Efficiency HEPA Air Filter Box
- Product Details:
-
Model: terminal HEPA filter unit
Dimension (mm): customized
Material: coated steel
Rated air flow: 1000 CMH
Place of origin: shenzhen,china
Minimum order quantity: 5 sets
Packing detail: wooden box
Delivery time: 3-15days
Supply ability: 1000 pcs per month
Payment terms: TT,LC,Paypal
Detailed Product Description

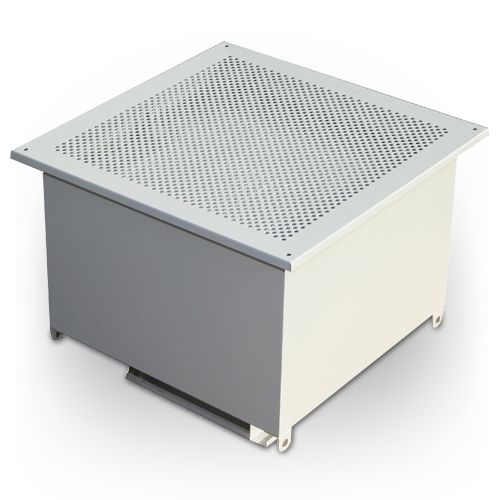

HEPA Box
Application : It is a replaceable HEPA unit , widely used in the technical field hospitals, pharmaceutical, semiconductor , LCD manufacturing,precision machinery, optical , etc. Body surface using electrostatic spray treatment, corrosion resistance, tank seal design further enhancesits uniqueness .
Application : It is a replaceable HEPA unit , widely used in the technical field hospitals, pharmaceutical, semiconductor , LCD manufacturing,precision machinery, optical , etc. Body surface using electrostatic spray treatment, corrosion resistance, tank seal design further enhancesits uniqueness .
frame: cold roll steel with coated/ SS304
Filter: Gel seal mini pleat HEPA filter or hepa filter with separator ,
supported and fixed by four sides press lock to facilitate the replacement
Air control: manual valve or actuator
Diffusing plate: coated cold steel/coated aluminum/SS304
EN 1822 efficiency: H14.U15
MPPS efficiency: H14: ≥99.995%
DOP efficiency: H14: ≥ 99.999%.
Recommended final pressure drop: 600 Pa.
Temperature: 70°C maximum in continuous service.
Test: 100% individually scanned to EN 1822.
Mounting system: Mechanical clamping structure,

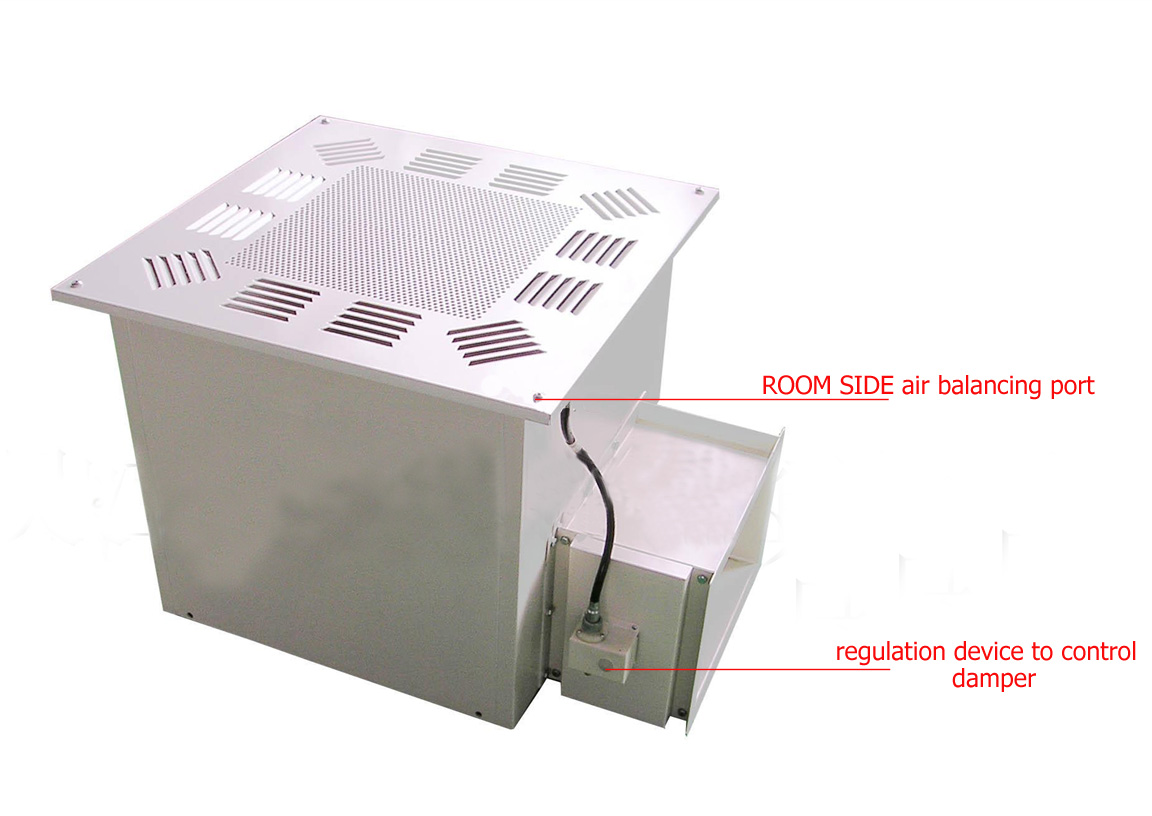

Optional: Butterfly regulating device for controlling the valve to adjust the amount of inlet air flow in clean room.
This device can be rotated directly from the bottom to control the valve which is connected by a metal screw between the butterfly valve, so that adjusting the interior air flow conveniently.
Filter: Gel seal mini pleat HEPA filter or hepa filter with separator ,
supported and fixed by four sides press lock to facilitate the replacement
Air control: manual valve or actuator
Diffusing plate: coated cold steel/coated aluminum/SS304
EN 1822 efficiency: H14.U15
MPPS efficiency: H14: ≥99.995%
DOP efficiency: H14: ≥ 99.999%.
Recommended final pressure drop: 600 Pa.
Temperature: 70°C maximum in continuous service.
Test: 100% individually scanned to EN 1822.
Mounting system: Mechanical clamping structure,
Optional: Butterfly regulating device for controlling the valve to adjust the amount of inlet air flow in clean room.
This device can be rotated directly from the bottom to control the valve which is connected by a metal screw between the butterfly valve, so that adjusting the interior air flow conveniently.
PAO Dust dispersing port, PAO upstream sampling test port. Ports are for testing air leakage for each HEPA box connected with testing device hose.
Notes: the darker shade specification filter is side edge sealed hepa filter(flanged), Other models are knife edge seal hepa filter or standard mini pleat HEPA filter
| FILTER SIZE | CASING SIZE | FACE VELOCITY | AIR FLOW | Round duct size | square duct size | INITIAL D.P | INITIAL D.P. | |
| TOP INLET | SIDE INLET | |||||||
| L×W×H（mm） | L×W×H（mm） | L×W×H（mm） | m/s | m3/h | （mm） | L×W（mm） | PAOH13(Pa) (99.97%@0.3um) | PAOH14(Pa) (99.99%@0.3um） |
| 430×430×80 | 500×500×280 | 500×500×450 | 0.75 | 500 | 250 | 200×200 | 185 | 202 |
| 400×400×90 | 500×500×290 | 500×500×460 | ||||||
| 610×610×80 | 680×680×280 | 680×680×450 | 0.75 | 1000 | 300 | 300×200 | 185 | 202 |
| 530×530×90 | 630×630×290 | 630×630×460 | ||||||
| 915×610×80 | 985×680×280 | 985×680×450 | 0.75 | 1500 | 350 | 400×200 | 185 | 202 |
| 650×650×90 | 750×750×280 | 750×750×450 | ||||||
| 1220×610×80 | 1290×680×280 | 1290×680×450 | 0.75 | 2000 | 350 | 500×200 | 185 | 202 |
| 1060×530×80 | 1160×630×280 | 1160×630×450 | ||||||
| 1220×915×80 | 1290×985×280 | 1290×985×450 | 0.75 | 3000 | 450 | 600×200 | 185 | 202 |
