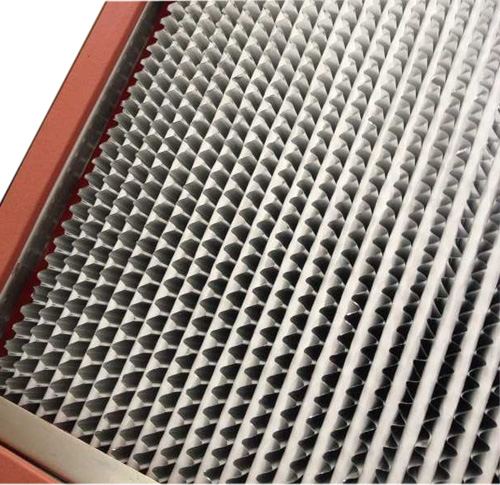

Heat-resistance Deep-pleat Filter
- Product Details:
-
Model: NGX
Dimension (mm): 610*610*150,as per request
Material: Stainless steel,glassfibre
Rated air flow: 1000 CMH
Place of origin: shenzhen,china
Minimum order quantity: 1pc
Packing detail: wooden box
Delivery time: 3-15days
Supply ability: 1000 pcs per month
Payment terms: TT,LC,Paypal
Detailed Product Description
Application: Protection of ultra-clean processes at high temperatures.
Frame: Stainless steel.
Gasket: Glass fibre.
Media: Glass fibre paper.
Separator: Aluminium.
Sealant: silicone,Ceramic, glass fibre.
DOP efficiency: 99.97% .
Temperature: 250-350°C in continuous service
Optional: Alternative frame materials and size available on request.
Standard specification
Frame: Stainless steel.
Gasket: Glass fibre.
Media: Glass fibre paper.
Separator: Aluminium.
Sealant: silicone,Ceramic, glass fibre.
DOP efficiency: 99.97% .
Temperature: 250-350°C in continuous service
Optional: Alternative frame materials and size available on request.
Standard specification
| Model |
Outside Dimensions (mm) |
Rated Air Flow (m3/h) |
Initial Resistance (Pa) |
Efficiency (%) |
Weight (kg) |
| NGX-5.8J | 305×610×150 | 580 | ≤220 | ≥99.99 | 6 |
| NGX-11.25J | 457×457×150 | 1125 | ≤220 | ≥99.99 | 8 |
| NGX-9J | 457×610×150 | 900 | ≤220 | ≥99.99 | 10 |
| NGX-10J | 610×610×150 | 1000 | ≤220 | ≥99.99 | 12 |
| NGX-19.25J | 915×610×150 | 1925 | ≤220 | ≥99.99 | 16 |
| NGX-10J1 | 484×484×220 | 1000 | ≤220 | ≥99.99 | 12 |
| NGX-16J | 630×630×220 | 1600 | ≤220 | ≥99.99 | 15 |
| NGX-15J | 610×457×292 | 1500 | ≤220 | ≥99.99 | 14 |
| NGX-26.25J | 762×610×292 | 2625 | ≤220 | ≥99.99 | 19 |
| NGX-22J | 610×610×292 | 2200 | ≤220 | ≥99.99 | 17 |
